A1: Causes and solutions for inaccurate workpiece dimensions:
Tool wear: Tool wear can lead to changes in cutting force, thereby affecting the dimensional accuracy of the workpiece.
Solution: Regularly inspect and replace worn tools to ensure they remain in good cutting condition.
Thermal Deformation of the Machine Tool: The machine tool may experience thermal expansion or deformation during operation, resulting in dimensional deviations.
Strategy: Control the machine temperature and implement cooling measures, such as using coolant or installing a cooling system, to reduce thermal deformation.
Inaccurate machining parameter settings: Incorrect settings for parameters like feed rate and cutting depth can affect the dimensional accuracy of the workpiece.
Solution: Set machining parameters reasonably based on material properties, tool type, and processing requirements. Conduct trial cuts and adjust parameters to find the optimal machining conditions.
A2: Causes and strategies for poor surface finish:
Improper Cutting Parameter Settings: Incorrect settings, such as excessive feed rates or high spindle speeds, can lead to poor surface finish.
Strategy: Optimize cutting parameters by reducing feed rates and adjusting spindle speeds appropriately to improve surface finish.
Tool wear or edge damage: Worn or damaged tool edges can cause irregular cutting and affect surface quality.
Solution: Regularly inspect and replace worn tools to ensure sharp edges. Use high-quality tools to enhance cutting performance.
Improper cutting fluid usage: Incorrect selection or use of cutting fluid may lead to poor lubrication or cooling, negatively impacting surface finish.
Solution: Choose the appropriate cutting fluid for the material and tool, and follow proper usage and replacement guidelines.
A3: In CNC machining, the phenomenon of workpieces having different diameters is usually caused by one of the following:
Uneven cutting forces: Uneven distribution of cutting forces during machining can cause tapered workpieces.
Solution: Adjust cutting parameters, such as feed rate and cutting depth, to balance the cutting forces. Consider using multiple tools to distribute the forces evenly.
Tool Wear or Edge Damage: Uneven tool wear or edge damage can cause inconsistent cutting, leading to varying sizes.
Strategy: Regularly inspect and replace worn tools to maintain good cutting conditions. Use high-quality tools and ensure proper installation and adjustment.
Machine tool thermal deformation: Heat-induced expansion or deformation of the machine tool can cause tapered workpieces.
Solution: Control the machine tool's temperature by using coolant or cooling systems. For high-precision workpieces, consider using temperature compensation features.
Uneven Clamping Force: Uneven distribution of clamping force in the fixture can lead to discrepancies in workpiece sizes.
Strategy: Adjust the distribution of clamping forces to ensure they are even. Use appropriate fixtures and clamping methods to maintain stable positioning during machining.
Q4: How to Solve Inconsistent Workpiece Dimensions?
A4: If the CNC machine's phase light is normal but the workpiece dimensions vary inconsistently, the issue may be caused by one of the following:
Uneven Tool Wear or Edge Damage: Uneven wear or damage can lead to inconsistent cutting forces, causing size instability.
Strategy: Regularly inspect and replace worn tools to ensure good cutting conditions. Use high-quality tools and ensure proper installation and adjustment.
Inappropriate cutting parameters: Incorrect parameter settings can cause variations in cutting forces, affecting dimensional stability.
Solution: Optimize cutting parameters, such as feed rate, cutting depth, and spindle speed, based on material properties and processing requirements. Conduct trial cuts to determine the best settings.
Thermal Deformation of the Machine Tool: Thermal effects during operation can cause size variations in workpieces.
Strategy: Control the machine's temperature and implement cooling measures to mitigate thermal deformation. For high-precision workpieces, consider using temperature compensation features.
Ares' "Hard Power"

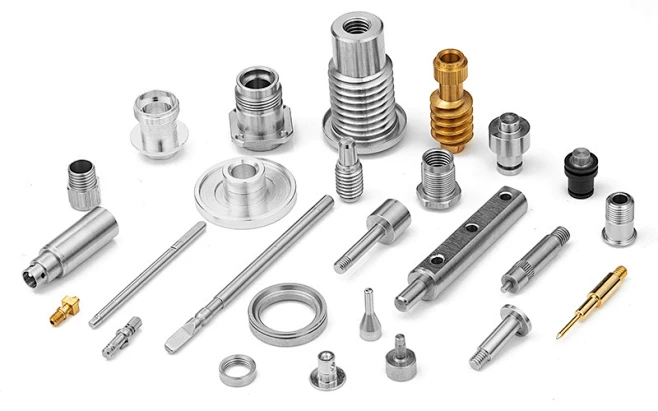

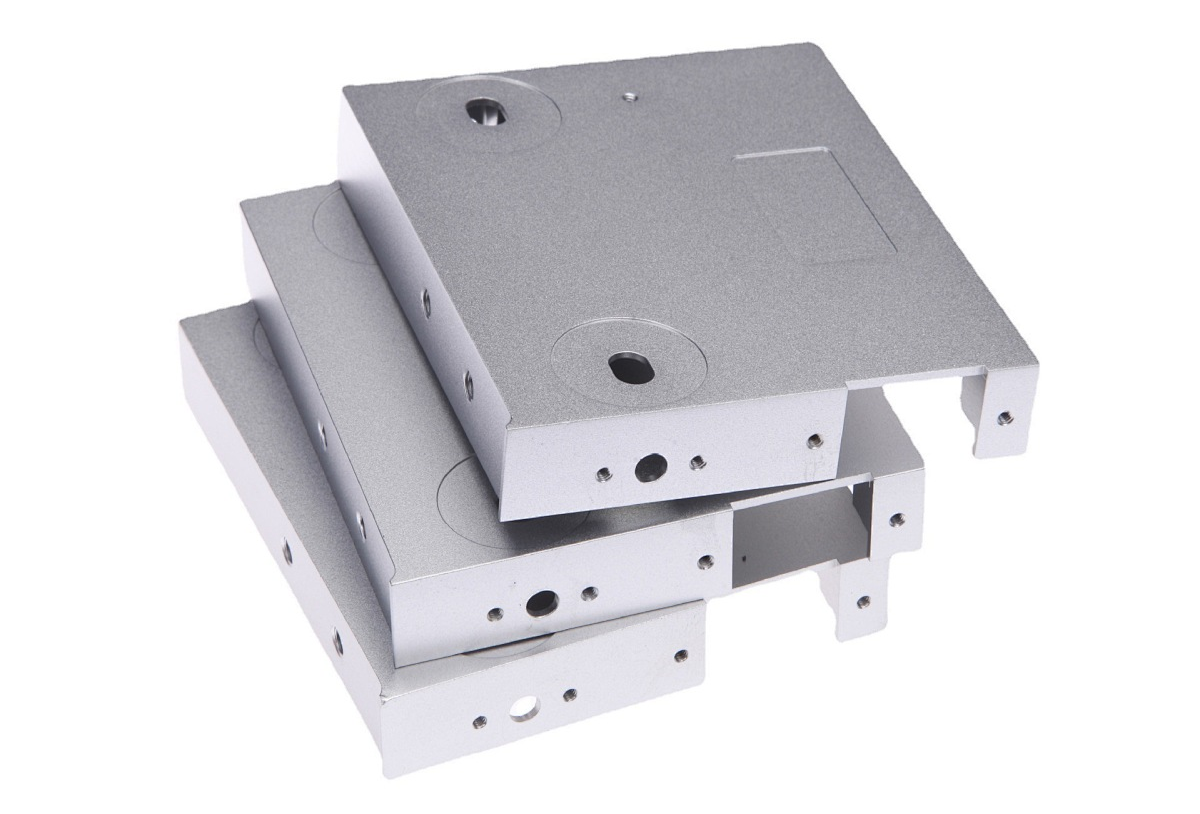

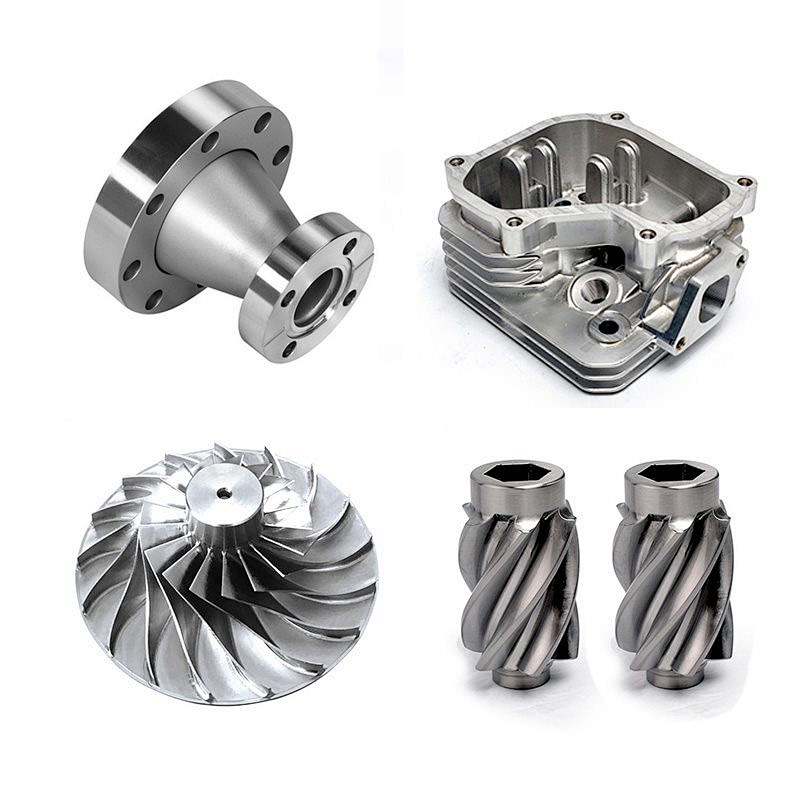

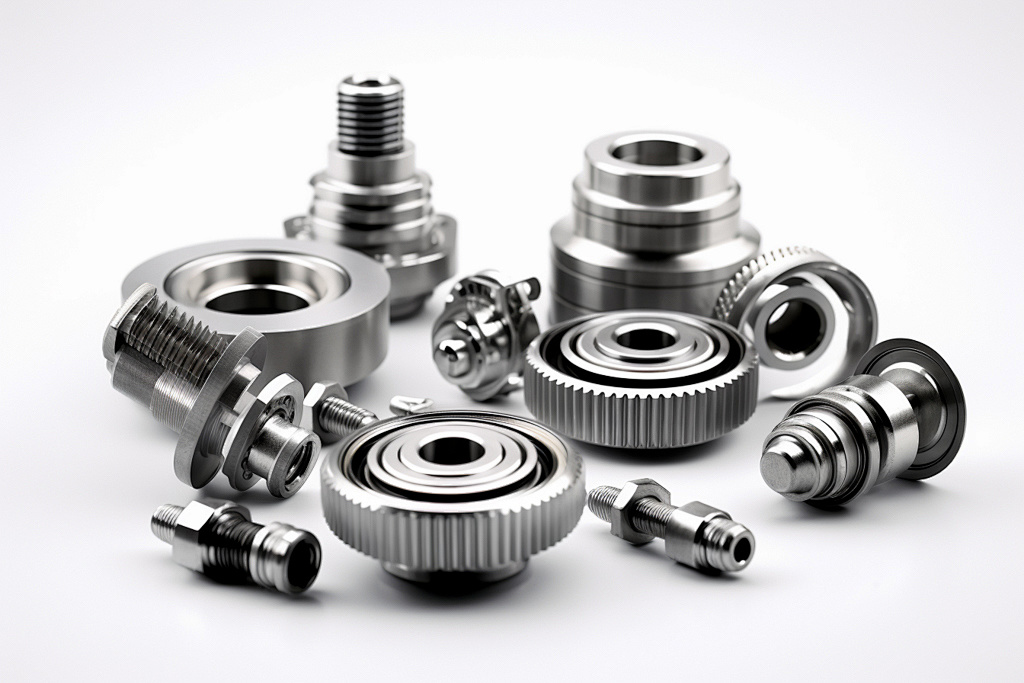

CNC machining technology is widely used in manufacturing. Ares' CNC machines are primarily employed for metal part machining and rapid mold processing. The raw materials used include No. 45 steel, 6061T6 aluminum alloy, 7075 aluminum alloy, zinc alloy, magnesium alloy, brass, and other metals. The machining methods involve milling, cutting, and specialized tools. Based on customer-provided 3D drawings, Ares uses CNC milling and cutting for rapid prototyping, transforming metal blocks into samples or small-batch parts that match the drawings. For small-batch customization and prototype production, Ares is a trustworthy partner!
